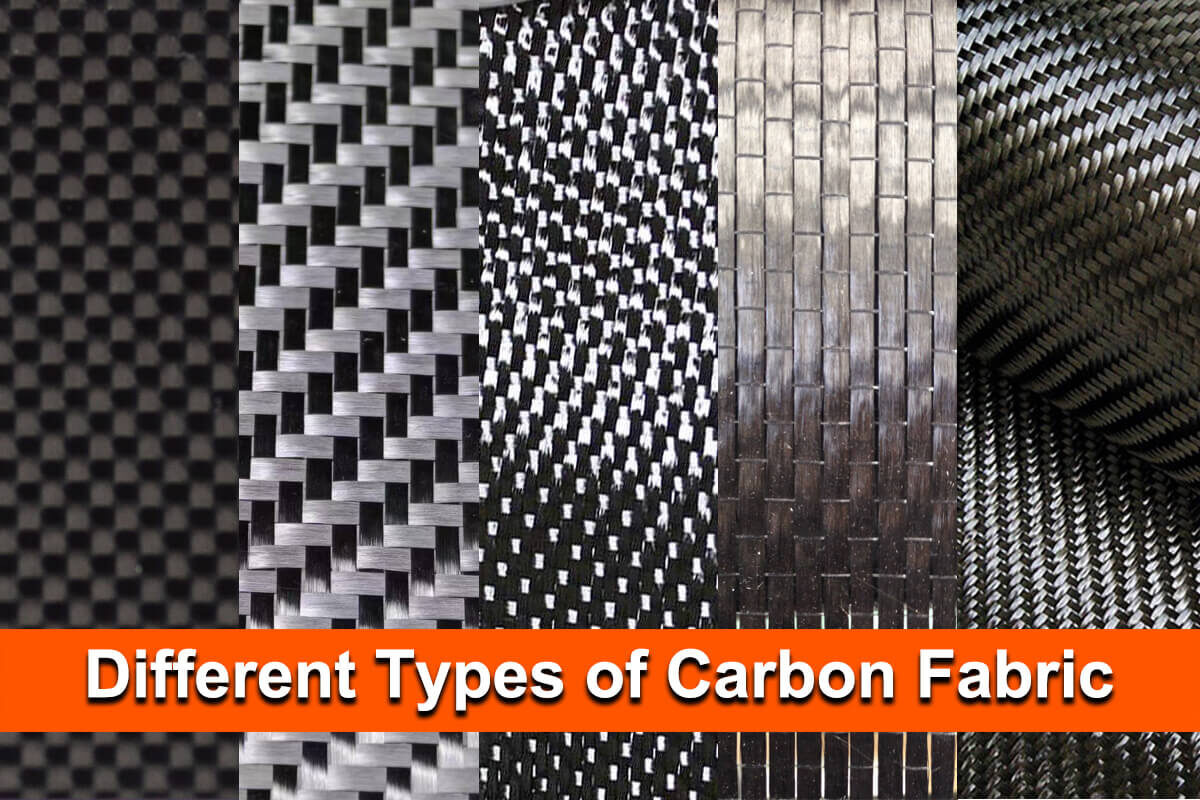

Understanding Different Types of Carbon Fabric

Carbon fabric is a versatile material with various applications. Its unique properties make it a popular choice in many industries. Let’s dive into the different types of carbon fabric, their features, applications, and pros and cons.

Types of Carbon Fabric

1. Plain Weave Carbon Fabric

plain weave carbon fabric Different Types of Carbon Fabric
plain weave carbon fabric Different Types of Carbon Fabric

This is the most common carbon fabric type. The fibers are woven in a simple over and under pattern.

Features:

  • High stability
  • Uniform look
  • Easy to handle

Applications:

  • Aerospace
  • Automotive interiors
  • Sporting goods

Pros and Cons of Plain Weave Carbon Fabric

Pros Cons
  1. High stability
  2. Uniform appearance
  3. Easy to handle
  1. Less flexible
  2. Can be harder to mold
  3. Lower drapability

2. Twill Weave Carbon Fabric

Twill Weave Carbon Fabric

Twill weave has a distinctive diagonal pattern. The fibers are woven in a 2×2 or 4×4 pattern.

Features:

  • More flexible
  • Better drapability
  • Smooth texture

Applications:

  • Car parts
  • Aircraft components
  • High-end sporting equipment
  • phone cases

Pros and Cons of Twill Weave Carbon Fabric

Pros Cons
  1. Better flexibility
  2. Good drapability
  3. Smooth texture
  1. Slightly more expensive
  2. Weaker than plain weave
  3. More complex to produce

3. Satin Weave Carbon Fabric

Satin Weave Carbon Fabric
Satin Weave Carbon Fabric

Satin weave carbon fabric has a glossy finish. The fibers are woven in a complex pattern, allowing more fibers to run in one direction.

Features:

  • High strength
  • Smooth surface
  • Better impact resistance

Applications:

  • Marine industries
  • Structural components
  • Luxury items

Pros and Cons of Satin Weave Carbon Fabric

Pros Cons
  1. High strength
  2. Smooth, glossy finish
  3. Excellent impact resistance
  1. More difficult to handle
  2. Higher cost
  3. Can be less stable

4. Uni-Directional Carbon Fabric

Uni Directional Carbon Fabric Carbon Fabric types
Uni Directional Carbon Fabric Carbon Fabric types

In uni-directional carbon fabric, all fibers run parallel in one direction.

Features:

  • High strength in one direction
  • Lightweight
  • Easy to align

Applications:

  • Wind turbine blades
  • Sporting goods
  • Reinforcement for composites

Pros and Cons of Uni-Directional Carbon Fabric

Pros Cons
  1. High strength in one direction
  2. Lightweight
  3. Easy to lay up
  1. Limited multi-directional strength
  2. Can be tricky to align
  3. Not as visually appealing

5. Bi-Directional Carbon Fabric

Bi Directional Carbon Fabric
Bi Directional Carbon Fabric

Bi-directional carbon fabric has fibers running in two directions. This provides balanced strength.

Features:

  • Balanced strength
  • Good stability
  • Versatile

Applications:

Pros and Cons of Bi-Directional Carbon Fabric

Pros Cons
  1. Balanced strength
  2. Good stability
  3. Versatile
  1. Can be more expensive
  2. Heavier than uni-directional
  3. Not as strong in one direction

Choosing the Right Carbon Fabric

When choosing a carbon fabric, consider the following factors:

  1. Application Needs: Determine the specific requirements of your project.
  2. Strength Requirements: Decide on the directional strength needed.
  3. Budget: Different weaves come at different costs.
  4. Handling and Fabrication: Consider the ease of handling and fabrication.
  5. Appearance: Some weaves have more aesthetic appeal.

Common Applications

Aerospace

Carbon fabric is widely used in the aerospace industry. Its high strength-to-weight ratio makes it ideal for aircraft components.

Automotive

In the automotive sector, carbon fabric is used for both structural and aesthetic purposes. It’s common in car interiors and high-performance parts.

Sporting Goods

Carbon fabric is a favorite in the production of sporting goods. Items like tennis rackets and bicycles benefit from its light weight and strength.

Marine

Boats and marine structures use carbon fabric for its durability and resistance to environmental factors.

Construction

In construction, carbon fabric reinforces concrete and other materials. It adds strength without adding excessive weight.

High-end daily necessities

With carbon fiber material application more and more wide. Many daily-use necessities are also made in this material.

For example, carbon fiber iPhone cases, carbon money clips, carbon fiber card holders, etc.

Conclusion

Carbon fabric is a remarkable material with diverse applications. By understanding the different types and their properties, you can choose the right carbon fabric for your needs. Whether it’s for aerospace, automotive, sporting goods, or any other industry, carbon fabric provides unmatched strength, flexibility, and durability.


By following this guide, you’ll be better equipped to select the right carbon fabric for your projects. Remember, the right choice can make a significant difference in performance and longevity.
